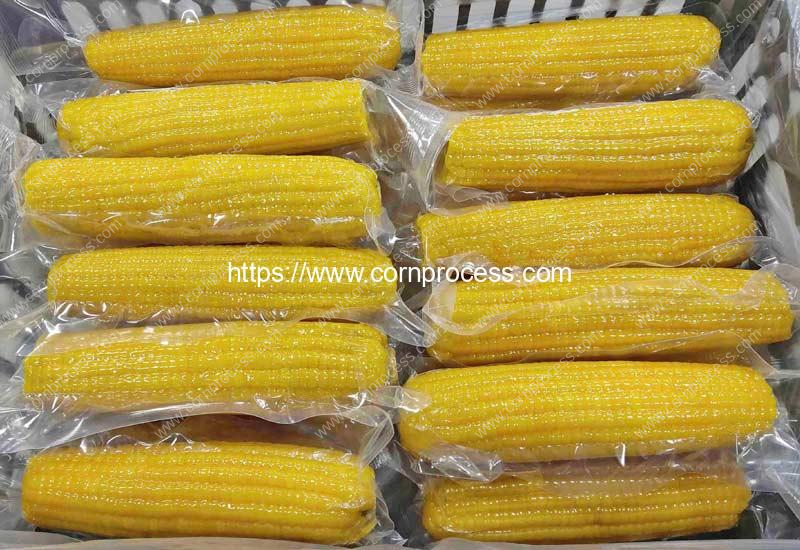

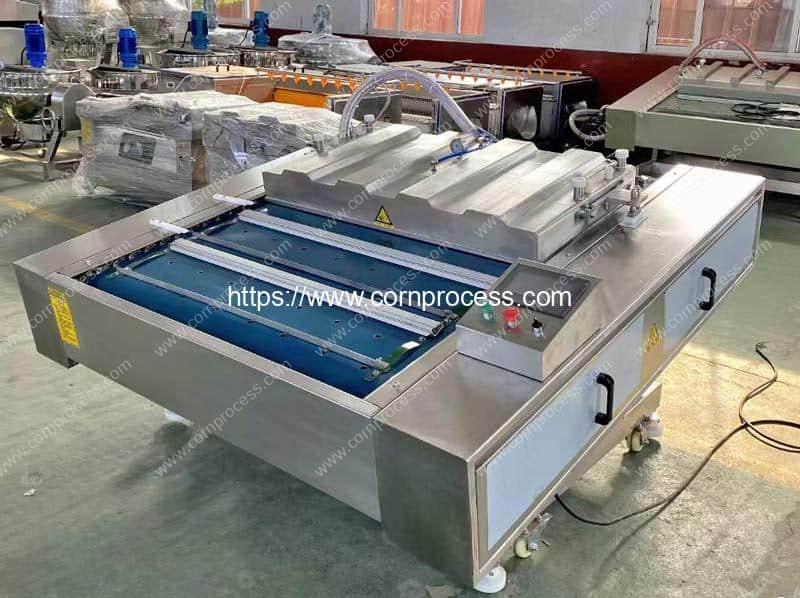

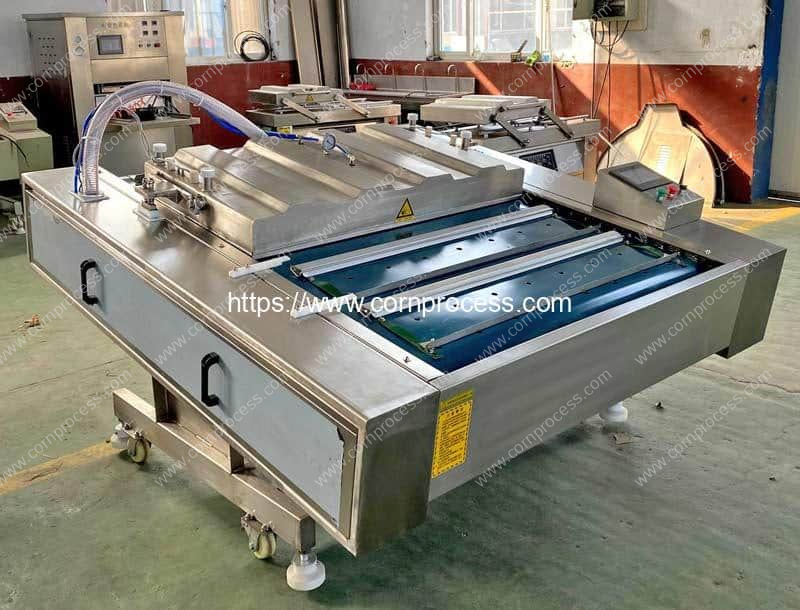

Continuous Rolling Sweet Corn Vacuum Packaging Machine is used to pack sweet corn in vacuum condition, which can extend the shelf life. It employs advanced electrical control and an excellent braking device, the chain drives the conveyor belt to work, automatically swings the cover, and continuously outputs the finished products. The whole machine adopts waterproof and moisture-proof computer board control, the operating system is fully sealed, and the whole machine can be rinsed with water. This machine works with automatic lid swinging. Specifically, when the chain advances, it drives the conveyor belt to move forward, and the products can be placed on the conveyor belt to output products continuously.
The vacuum packing machine is widely used in cooked liquid, solid, powdery paste food, pet food, grain, fruit, vegetable, seafood, pickles, preserved fruit, chemicals, medicinal materials, electronic components, precision instruments, rare metals, circuit boards and other industries .
It can prevent oxidation, mildew, moth, rot, and dampness, and prolong the preservation period. Especially suitable for tea, food, medicine, shops, research institutions and other industries, it has the advantages of beautiful appearance, compact structure, high efficiency, simple operation, with a seat wheel at the bottom, and easy to move.
Characteristics of Continuous Rolling Vacuum Packing Machine
- The packing machine adopts intelligent digital display temperature control system to control the sealing temperature, the temperature error is less than ±2 degrees Celsius, high sealing strength, good sealing.
- Its body is made of 304 stainless steel, and the execution parts of the equipment are pneumatic control system, which simplifies the mechanical structure, significantly reduces the failure rate, and makes the machine run more smoothly and safely. The sealing is beautiful and generous.
- The sealing machine adopts the pneumatic vacuum sealing method, and the electrical equipment adopts the independently developed programmable logic computer board controller, which improves the production efficiency and service life of the equipment.
Specification of Continuous Rolling Sweet Corn Vacuum Packing Machine
| Model | RM-RDZ100 |
| # of seal bars | 2 pcs |
| Effective Sealing Size(mm) | 1100X8 |
| Chamber Size (LxWxH mm) | 1220X460X100 |
| Seal Speed | 240~360 times/h (depending on products) |
| Vacuum Pump | Eurovac 200 |
| Electrical | 380V, 3PH, 50HZ, 8KW |
| Dimensions (LxWxH mm) | 2000X1400X1360mm |
| Machine Weight(kg) | Approx. 600 |
| Consumables | Vacuum pump oil, electric heating strip, adhesive tape, high temperature cloth |
Working Video of Rolling Type Corn Vacuum Packing Machine
Company Profile
Romiter Machinery Co., Ltd. is a market-leading designer and manufacturer of corn processing machines. Romiter Machinery wins a wide reputation for high-quality machines with high efficiency, excellent reliability, easy maintenance, long lifespan and an excellent technical support team.
Now, Our factory can provide corn washing cleaning machines, corn dehusking machines, corn threader machines, corn cutting machines, popcorn making machines, kettle corn making machine, corn flakes making machines, steam flaked corn production line, corn packing machine, vacuum packed fresh corn production line, frozen sween corn kernel production line. corn flour milling machine, and corn grits milling machine
Romiter Group can provide customized machine for customers. Welcome to contact us for more information.
