Automatic Frozen Sweet Corn Kernel Production Line



Production process of frozen sweet corn processing:

Fresh corn → corn peeling → threshing → cleaning → picking → blanching → air cooling → vibration dewatering → lifting and conveying → IQF quick freezing → packaging (optional).

Automatic Feeding Fresh Sweet Corn Thresher Machine separates the corn kernel from the central corn cob for fresh sweet corn. The Corn Threshing depth is adjustable, which can meet matching different requirements.  This Fresh Sweet Corn Thresher Machine is suitable for different-sized corn automatically. It is suitable for food processing industries like frozen corn kernel manufacturers, canned corn kernel manufacturers, nitrogen-filled fresh corn kernel manufactures and corn beverage manufacturers.

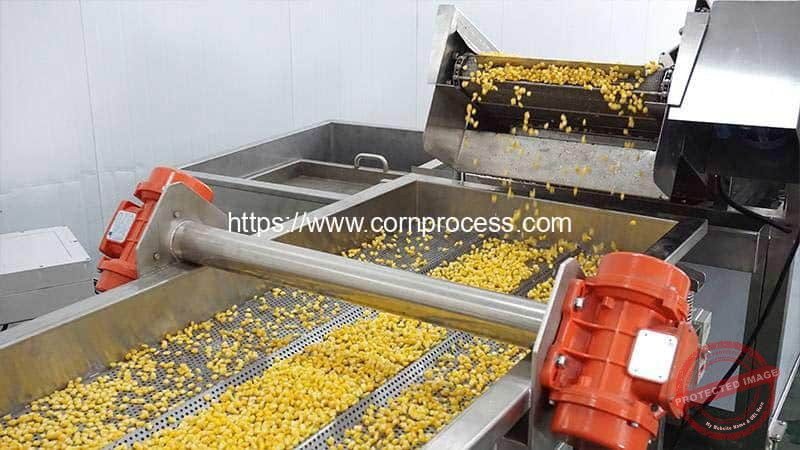

Automatic Corn Kernel Vibrate Water Removing Machine is a piece of equipment designed to efficiently remove surface water from corn kernels after washing or blanching. During Vibrating, high-frequency vibrations will make the corn kernel spread and excess water will be shaked off from the corn kernel without damaging them. The water will fall down on the bottom water collection plate which allow to to efficiently manage removed water to drainout place. Stainless Steel SUS304 material make the machine can bear water and avoid rust during working. which make is suitable for food-grade application.

These machines are commonly used in food processing plants, agricultural industries, and corn product manufacturing facilities. The primary goal is to prepare the kernels for further processing, such as drying, packaging, or cooking.

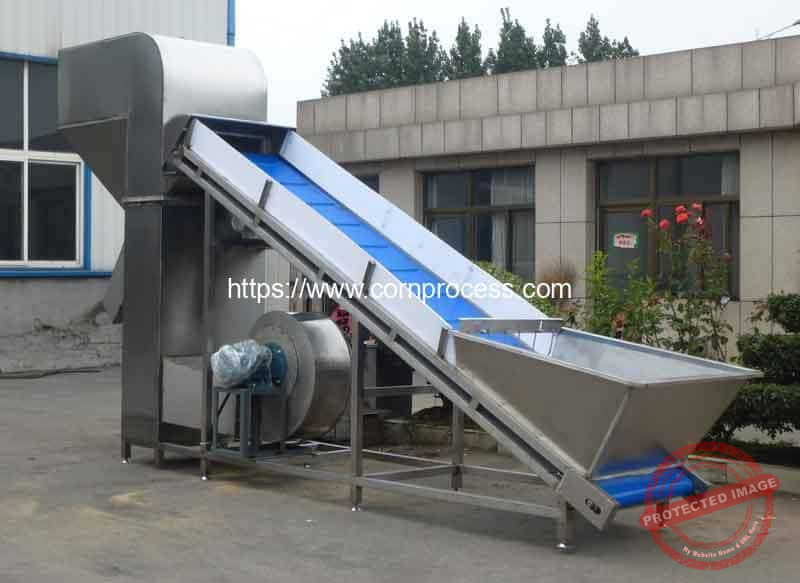

Automatic Sweet Corn Kernel Winnowing Cleaning Machine is used to clean the sweet corn kernel and remove the corn kernel silk and impurity, which make sure we can get clean and whole corn kernel. This Corn Kernel Winnower Machine can also be used on green beans, soybean, cabbage and spinach. This machine is made of high-quality stainless steel, conveyed by food grade flat belt, separated by the low-noise centrifugal ventilator. Automatic Frozen Corn Kernel Winnowing Machine is with simple structure, stable operation, low noise, low energy consumption, excellent separating and grading performance.

Working Principle of Fresh Corn Kernel Winnowing Cleaning Machine

Corn Kernel Materials go from the hopper, conveyed by flat belt into separator inlet; simultaneously, The wind blasts from bottom to up and winnowing separating whole corn kernel. The Leaf, Stem and Impurity will be blown out from the debris outlet. the final cleaned whole corn kernel products is blown out from the material outlet via ventilating duct. Wind power can be adjusted according to the corn kernel condition.

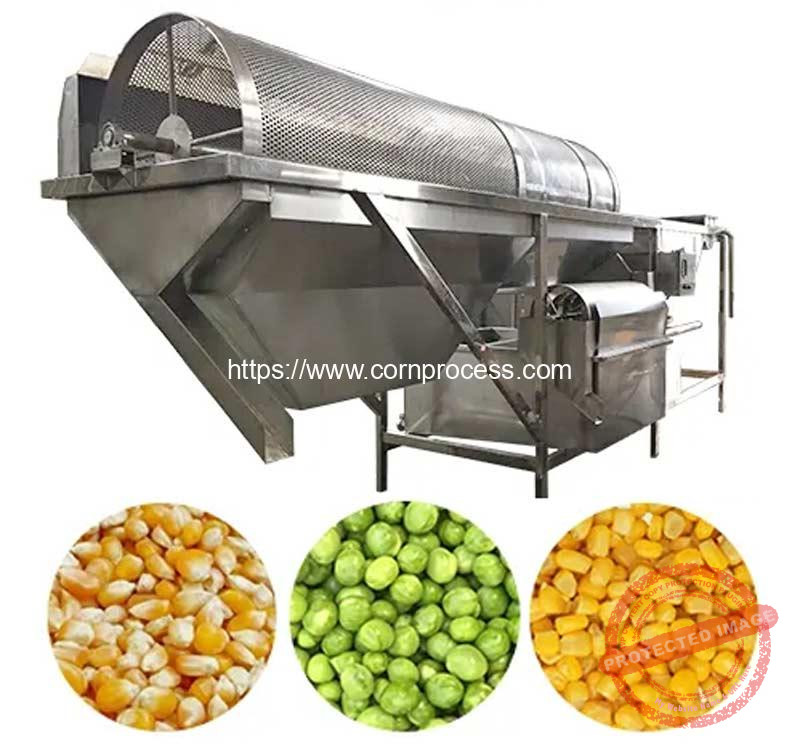

Rotary Drum Type Corn Kernel Washing Cleaning Machine is a specially designed machine for washing corn kernels. It can remove debris of the corn kernel, which is mixed with the threshed corn kernel.

Rotary drum type corn kernel washing machine is composed of debris removing tank, separating drum and circulation water device. After the corn kernel feeds into the washer inlet, the sweet corn kernel goes into the debris removing tank evenly under the function of water flow. In the debris-removing tank, the first groove is for heavy debris. by adjusting the water flow, make the debris heavier than sweet corn kernel sinks into the bottom. The second groove is for light debris. Through a special splitter plate, make floating debris (partial sweet corn hair and light insects) go into the garbage collection tank under the guide of water flow, and the sweet corn kernels sink into the bottom slowly. At the bottom, by the force of water flow, the sweet corn kernels, broken sweet corn kernels and husks will go into a separating drum.

After sweet corn kernels go into the separating drum, the first outlet separates broken sweet corn kernels, insects, husks, and partial sweet corn hair; the second outlet discharges fine sweet corn kernels, which go to further processing; and the third outlet discharges broken sweet corn cobs.

This machine has no conveying belt, sweet corn kernels go ahead by water flow and spiral fins. After the corn kernel rotary drum washing machine, you can get the best-cleaned sweet corn kernel & insect-free. corn kernel washing machine is suitable for washing corn kernels and pea seeds.  Nowadays,  It’s widely used in sweet corn kernel or pea freezing lines and canning lines.

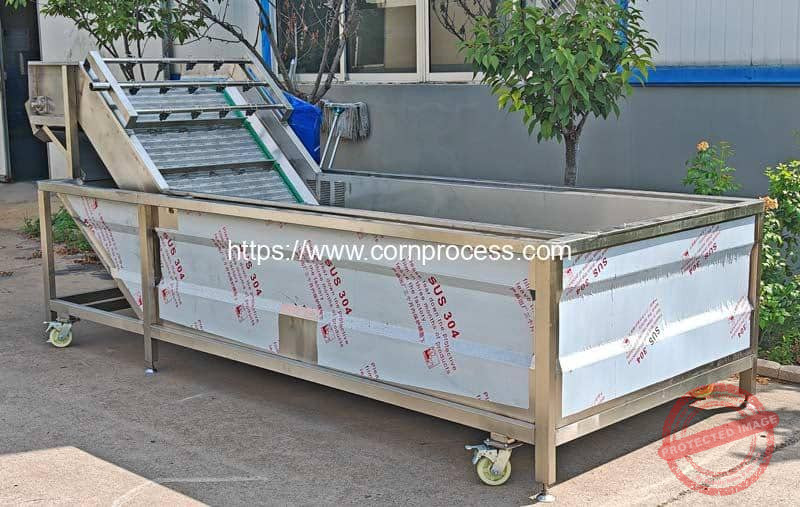

Automatic Sweet Corn Air Bubble Washing Cooling Machine is used to wash sweet corn and cool the hot water blanched sweet corn. This system uses air bubbles water to clean the sweet corn. The bubbles help remove dirt, debris, and other contaminants from the corn kernels more effectively than just a water spray alone. The cold water will also cool the hot water blanchined sweet corn, which make it is suitable for vacuum packing operation. Such a machine is designed to increase efficiency and ensure that the sweet corn is cleaned and cooled quickly and uniformly, which is essential for maintaining freshness and quality in large-scale food processing operations. It is widely used in Sweet Corn Production Line.

Automatic Bucket Lift Type Fresh Corn Kernel Blanching Machine is an advanced food processing machine designed to blanch fresh corn kernels in an efficient and automated manner. This machine is ideal for large-scale production, ensuring consistent blanching results, maintaining kernel quality, and improving productivity. This Hot Water Blanching Machine is design with bucket lift which allow the worker can clean the blanching machine bucket bottom very easy. Corn Kernel Blanching Machine is made with food-grade stainless steel SUS304 for corrosion-resistant, suitable for handling water and high temperatures, durability, hygiene, and ease of cleaning. This fresh corn kernel blanching machine is widely used in food processing industries to prepare corn kernels for freezing, canning, or drying.

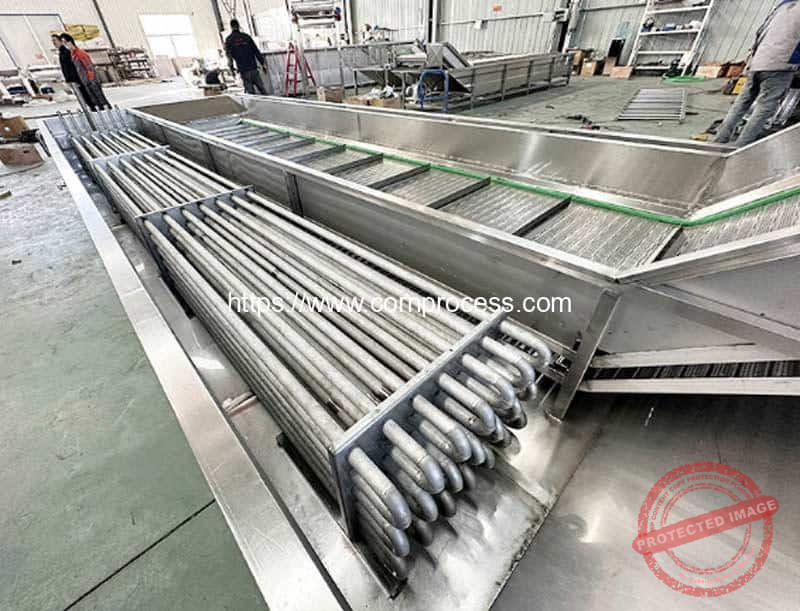

9. Sweet Corn Kernel Ice Water Cooling Machine

10. Sweet Corn Kernel Vibrate Water Removing Machine

11. Sweet Corn Kernel Spreading Feeding Machine

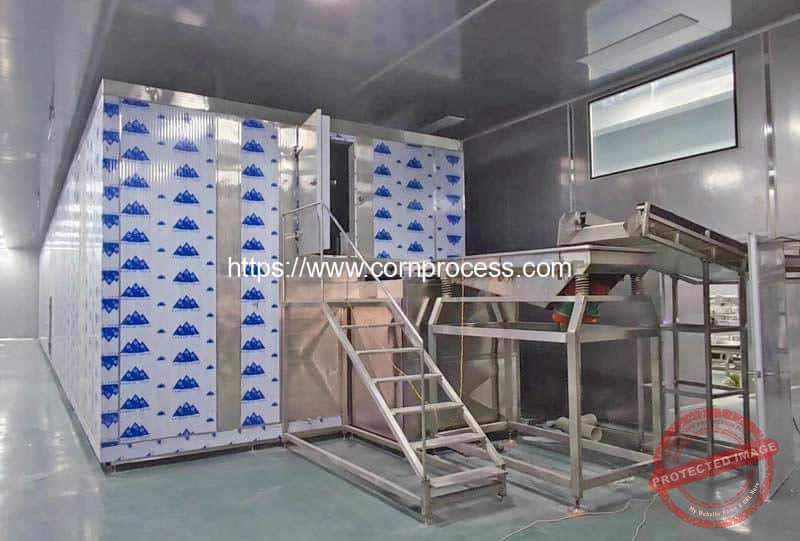

12. Sweet Corn Kernel Instant Freezer

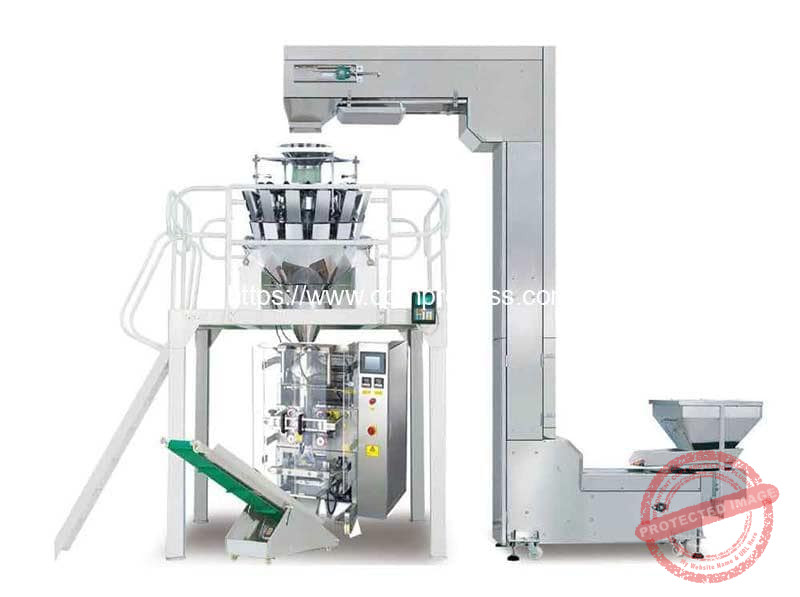

13. Frozen Sweet Corn Kernel Packing Machine

Ingredients: Fresh corn on the cob

Product: Quick-frozen fresh corn kernels (or other customized)

Raw material standard: The best harvest period of sweet corn is the milk maturity period, which is about 20 days after pollination. Harvesting criteria: corn leaves are dark green in color, encapsulated leaves are bluish-green, filaments withered into dark brown, full grains, yellow or light yellow in color, uniform in color, uniform in size, neatly arranged, without variegated grains, bald tips, missing grains and The endosperm is sticky and milky. Operation requirements: harvest with bracts, operate carefully, enjoy and take care of, avoid sunlight, heavy pressure, and collision.

Features of Frozen Corn Kernel Production Line
